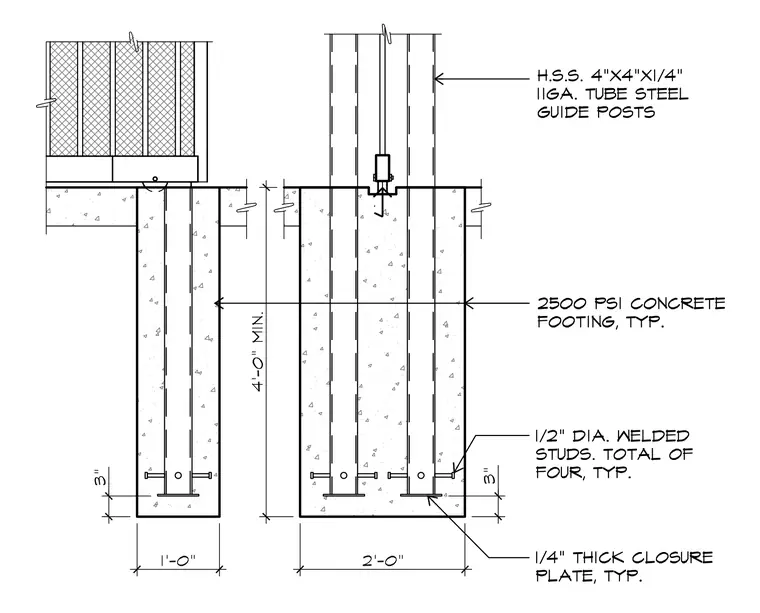

Hollow structural section four-inch by four-inch by one-quarter-inch, eleven-gauge tube steel guide posts are embedded into a two-foot-wide by four-foot-minimum-depth twenty-five-hundred psi concrete footing. Each post features a one-quarter-inch-thick bottom closure plate welded in place and four one-half-inch-diameter welded studs anchoring the base within the concrete. A rolling gate assembly is supported adjacent to the structural post.
