Two 5/8-inch diameter by 10-inch long steel cane bolts with 2-inch long handles drop through 3/4-inch diameter by 2-inch long steel pipe guides welded to the gate frame. The bolts engage a 1-1/2 inch by 1-1/2 inch by 1/4-inch steel angle welded to the gate frame, featuring a 5/8-inch diameter half-circle cut that serves as the bolt catch. All exposed steel components are painted to match the enclosure finish above finish grade.

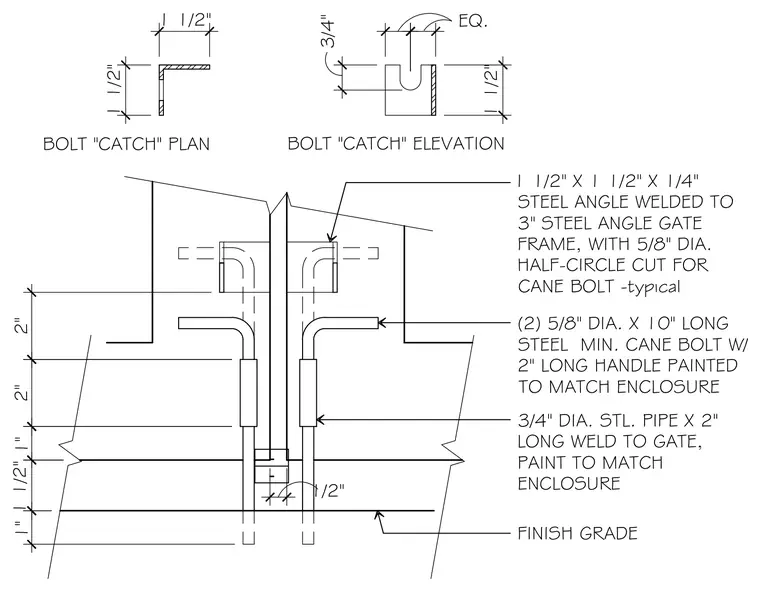

1 1/2" X 1 1/2" X 1/4" STEEL ANGLE WELDED TO 3" STEEL ANGLE GATE FRAME, WITH 5/8" DIA. HALF-CIRCLE CUT FOR CANE BOLT -typical (2) 5/8" DIA. X 10" LONG STEEL MIN. CANE BOLT W/ 2" LONG HANDLE PAINTED TO MATCH ENCLOSURE BOLT "CATCH" ELEVATION 3/4" DIA. STL. PIPE X 2" LONG WELD TO GATE, PAINT TO MATCH ENCLOSURE BOLT "CATCH" PLAN FINISH GRADE - - 1 1/2" 1 1/2" 2" 1" 1" 1/2" 1 1/2" 3/4" EQ. 2" 1 1/2" 7 t A'- Z 7 t 0= \ \ "V '“3 r~ J ■V [ * ■v t ■v 7^ u u ■V
