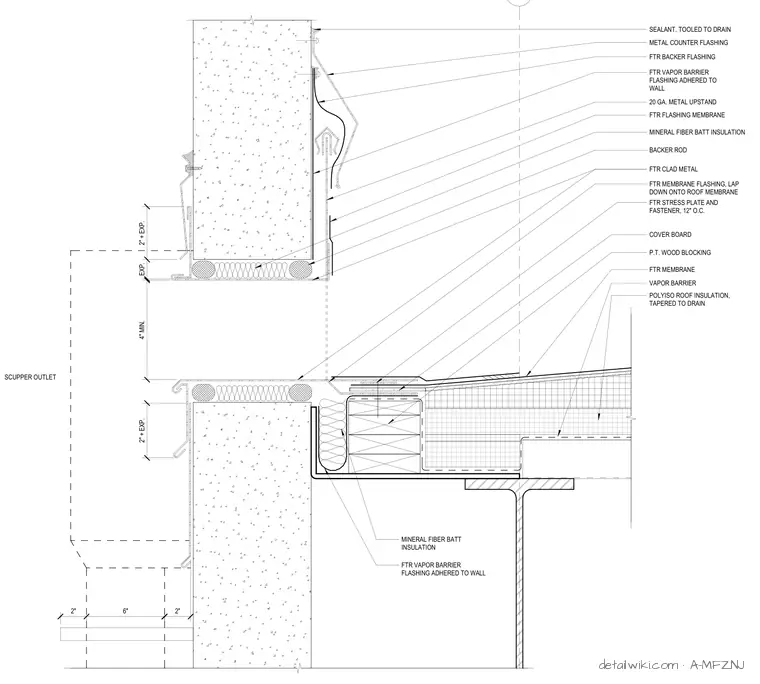

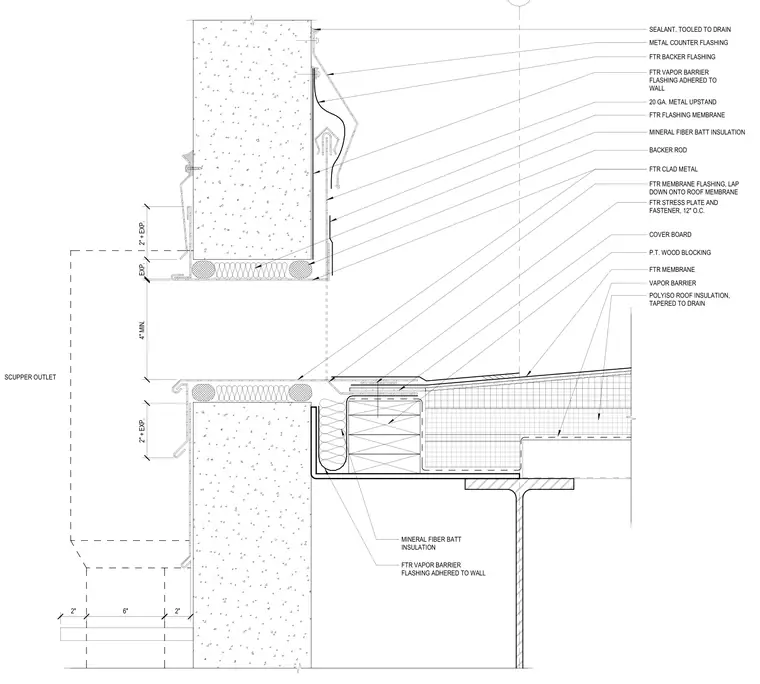

This assembly features a through-wall scupper outlet integrated into a parapet wall. The roof system consists of polyisocyanurate insulation tapered to the drain, topped with a cover board and a field-applied membrane. The membrane is secured at the parapet with stress plates and fasteners spaced at twelve inches on center, with flashing lapped down onto the roof membrane. A twenty-gauge metal upstand provides a minimum four-inch vertical rise, protected by metal counter flashing and sealant tooled to drain. The parapet is constructed with pressure-treated wood blocking and mineral fiber batt insulation, with vapor barrier flashing adhered to the wall and backer flashing installed behind the metal cladding.
Text on the drawing
SCUPPER OUTLET 2" + EXP. 2" + EXP. EXP. 2" 2" 6" FTR MEMBRANE P.T. WOOD BLOCKING FTR STRESS PLATE AND FASTENER, 12" O.C. FTR CLAD METAL FTR MEMBRANE FLASHING, LAP DOWN ONTO ROOF MEMBRANE COVER BOARD MINERAL FIBER BATT INSULATION VAPOR BARRIER POLYISO ROOF INSULATION, TAPERED TO DRAIN BACKER ROD MINERAL FIBER BATT INSULATION METAL COUNTER FLASHING SEALANT, TOOLED TO DRAIN 20 GA. METAL UPSTAND 4" MIN. FTR VAPOR BARRIER FLASHING ADHERED TO WALL FTR FLASHING MEMBRANE FTR VAPOR BARRIER FLASHING ADHERED TO WALL FTR BACKER FLASHING
