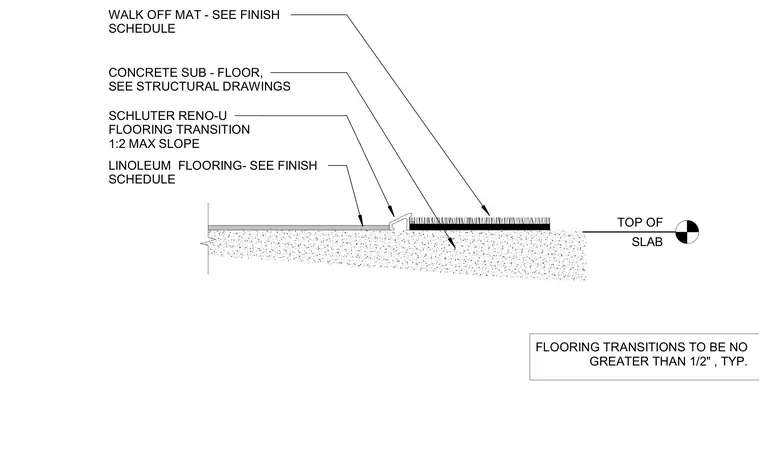

A concrete sub-floor supports linoleum flooring on one side and a walk-off mat on the other. A Schluter Reno-U flooring transition strip bridges the change in elevation between the two finish materials. The transition profile provides a maximum slope of one to two to meet accessibility requirements. All typical flooring transitions are maintained at no greater than one-half inch total height.
SLAB TOP OF SCHLUTER RENO-U FLOORING TRANSITION 1:2 MAX SLOPE LINOLEUM FLOORING- SEE FINISH SCHEDULE CONCRETE SUB - FLOOR, SEE STRUCTURAL DRAWINGS WALK OFF MAT - SEE FINISH SCHEDULE FLOORING TRANSITIONS TO BE NO GREATER THAN 1/2" , TYP.
