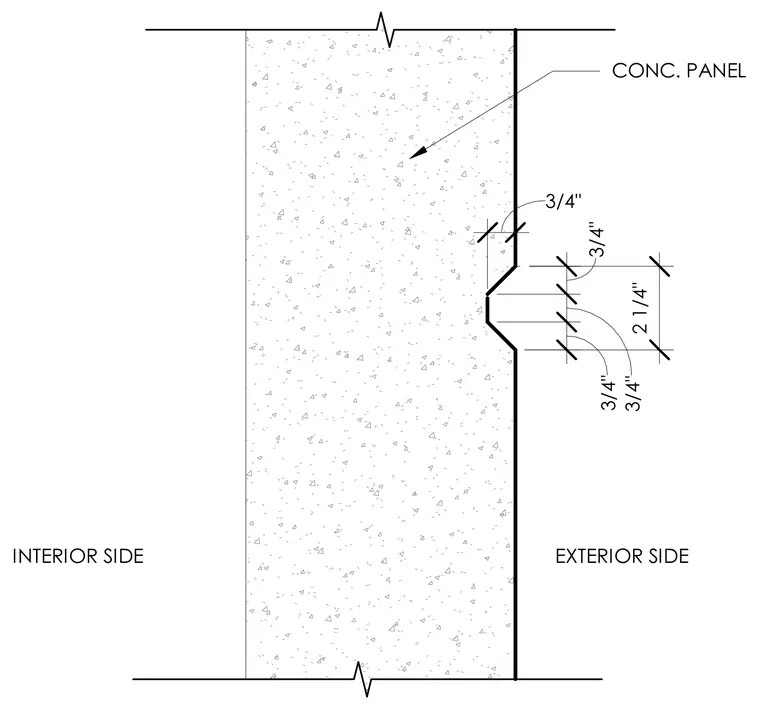

A cast-in-place or precast concrete wall panel features a recessed architectural reveal on its exterior face. The profile incorporates three-quarter-inch chamfered or angled setbacks leading into a flat two-and-a-quarter-inch wide base. The overall depth of the reveal is dimensioned with three-quarter-inch increments relative to the primary exterior wall plane.
EXTERIOR SIDE CONC. PANEL INTERIOR SIDE 3/4" 3/4" 3/4" 3/4" 2 1/4" 4 2 i A — 4 A
