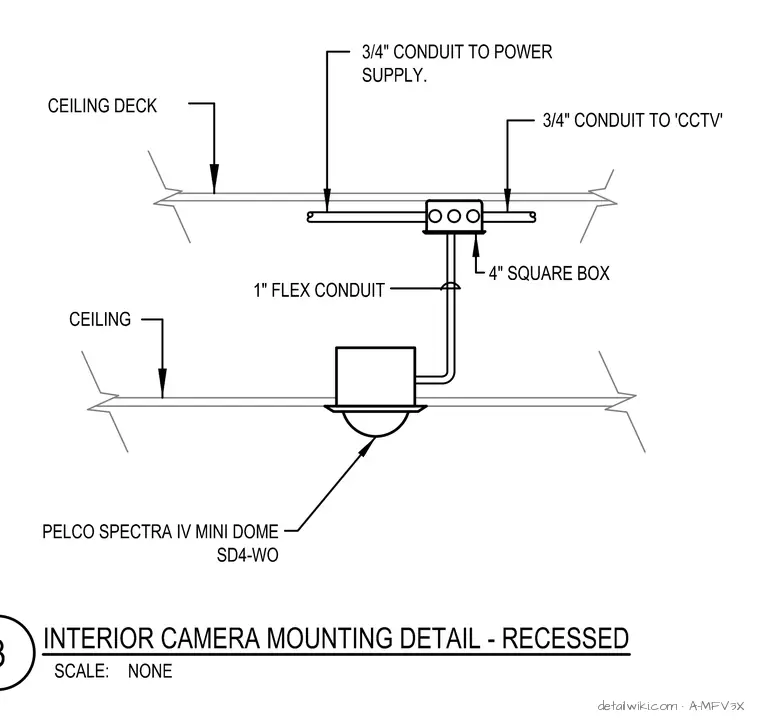

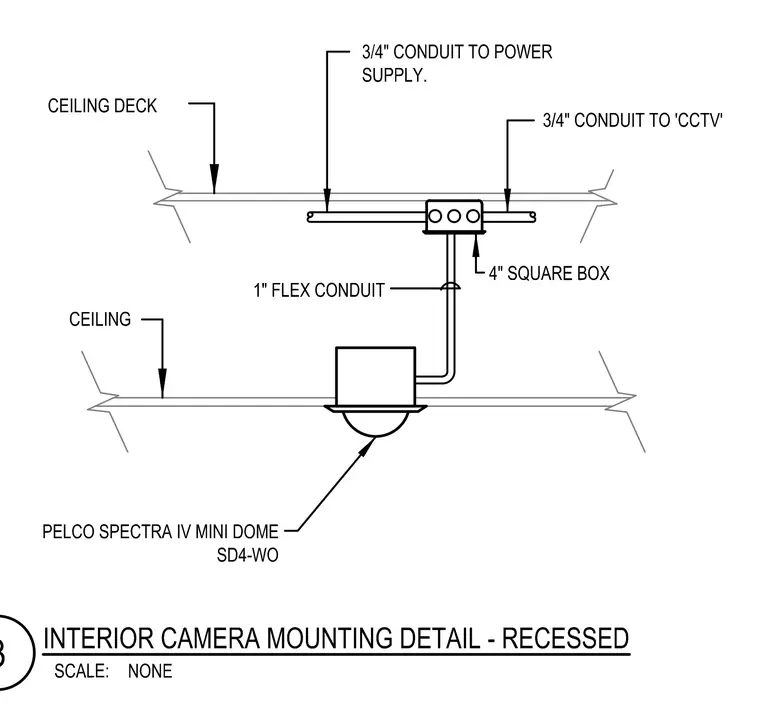

The Pelco Spectra IV Mini Dome SD4-WO camera is recessed into the ceiling assembly. A one-inch flexible conduit connects the camera housing to a four-inch square junction box located above the ceiling near the ceiling deck. Three-quarter-inch conduit runs to the power supply and to the CCTV system.
