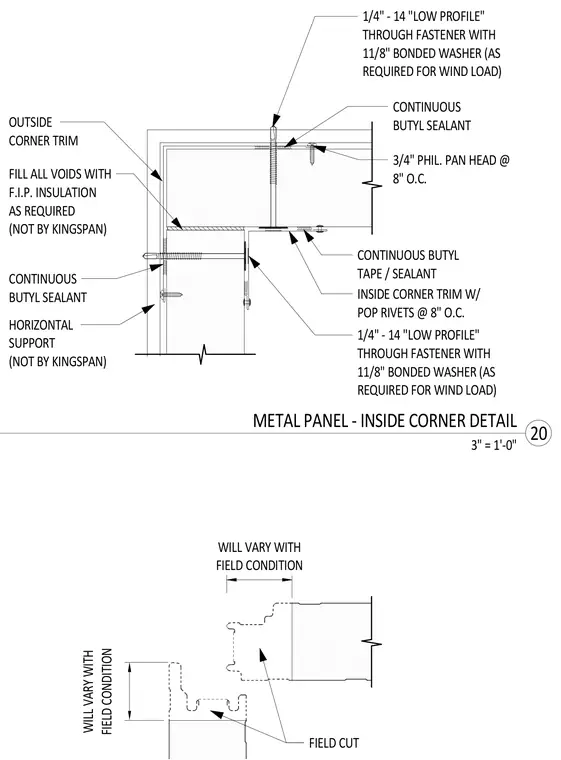

An inside corner metal panel assembly features horizontal supports secured with 1/4 inch - 14 low profile through fasteners equipped with 1 and 1/8 inch bonded washers for wind load resistance. Inside and outside corner trims are tied in with pop rivets spaced at 8 inches on center and 3/4 inch Phillips pan head screws spaced at 8 inches on center. Continuous butyl tape and sealant are applied at joints to maintain weather tightness, and all voids are filled with field-foamed-in-place insulation as required. Field cuts and variable field conditions govern the final sizing and fit of the panel components.
WILL VARY WITH FIELD CONDITION WILL VARY WITH FIELD CONDITION FIELD CUT 3/4" PHIL. PAN HEAD @ 8" O.C. INSIDE CORNER TRIM W/ POP RIVETS @ 8" O.C. OUTSIDE CORNER TRIM HORIZONTAL SUPPORT (NOT BY KINGSPAN) CONTINUOUS BUTYL SEALANT 1/4" - 14 "LOW PROFILE" THROUGH FASTENER WITH 11/8" BONDED WASHER (AS REQUIRED FOR WIND LOAD) CONTINUOUS BUTYL SEALANT 1/4" - 14 "LOW PROFILE" THROUGH FASTENER WITH 11/8" BONDED WASHER (AS REQUIRED FOR WIND LOAD) CONTINUOUS BUTYL TAPE / SEALANT FILL ALL VOIDS WITH F.I.P. INSULATION AS REQUIRED (NOT BY KINGSPAN) 3" = 1'-0" 20 METAL PANEL - INSIDE CORNER DETAIL
