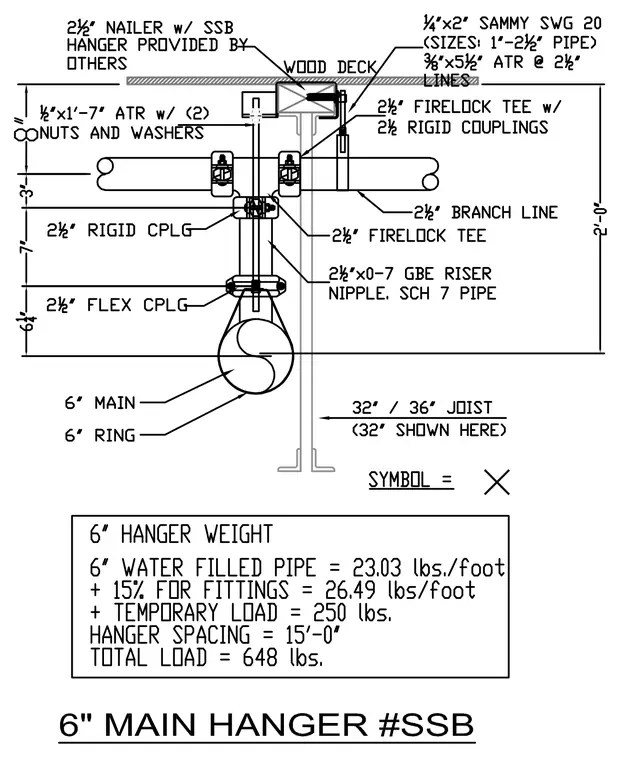

A six-inch main pipe is suspended beneath a wood deck using a trapeze or hanger assembly supported by threaded rods and a two-and-a-half-inch nailer with an SSB hanger provided by others. The assembly incorporates a quarter-inch by two-inch Sammy SWG 20 anchor, three-eighths-inch by five-and-a-half-inch all-thread rod at two and a half inches, and a two-and-a-half-inch Firelock tee with rigid couplings. A two-and-a-half-inch by zero-seven-inch GBE riser nipple in schedule 7 pipe connects to a two-and-a-half-inch flexible coupling and a six-inch ring supporting the main pipe. Additional branch lines feature two-and-a-half-inch Firelock tees and rigid couplings suspended near a thirty-two-inch or thirty-six-inch joist. A hanger weight calculation block details a total load of six hundred forty-eight pounds based on water-filled pipe, fittings, temporary load, and a fifteen-foot hanger spacing.
