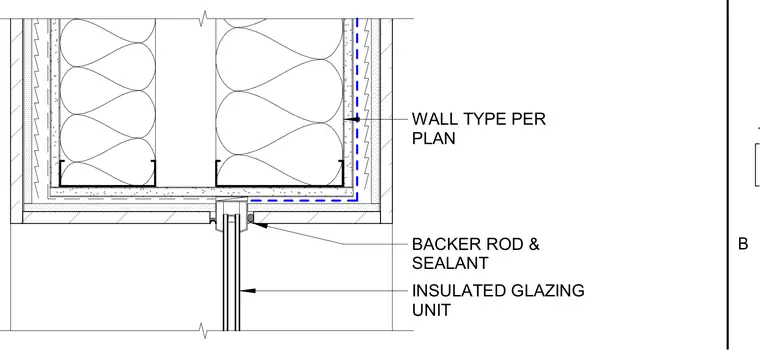

An aluminum window head assembly interfaces with an insulated framed wall specified per plan. The glazed opening incorporates an insulated glazing unit secured with backer rod and sealant at the interior frame joint. The surrounding wall construction consists of metal studs, insulation, and interior gypsum board layers.
