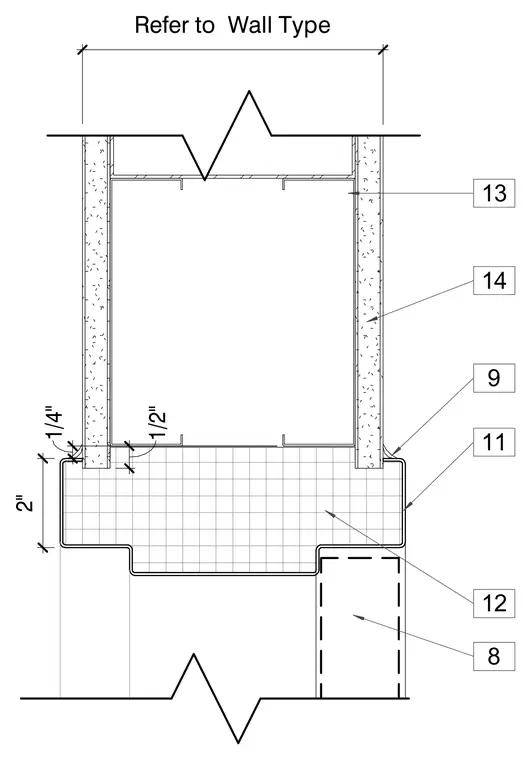

This architectural detail shows an interior partition wall base assembly with metal stud framing and gypsum board layers. The framing ties into a base track member with specified dimensional clearances of one-quarter inch and one-half inch. A two-inch vertical dimension coordinates the base height. Numbered callouts reference specific wall types and components.
