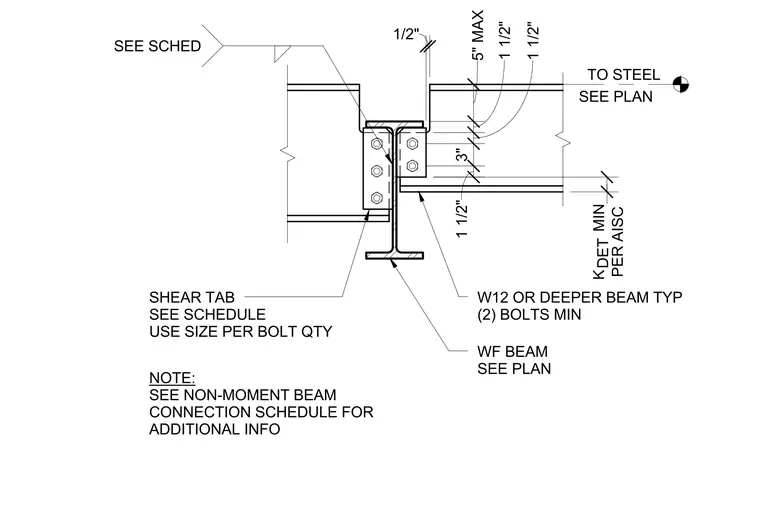

A wide flange beam is coped at the top flange to clear the intersecting support, framing into a supporting wide flange beam sized per plan at W12 or deeper. Connection is made using a shear tab sized per schedule with a minimum of two bolts. Dimensions indicate a half-inch cope clearance and specific edge distances including one-and-a-half-inch spacings and a maximum five-inch dimension. Minimum k-det detail is provided per American Institute of Steel Construction standards. Additional information is referenced in the non-moment beam connection schedule.
TO STEEL SEE PLAN W12 OR DEEPER BEAM TYP (2) BOLTS MIN WF BEAM SEE PLAN 1/2" 1 1/2" 3" 1 1/2" 1 1/2" 5" MAX SHEAR TAB SEE SCHEDULE USE SIZE PER BOLT QTY PER AISC K MIN DET SEE SCHED NOTE: SEE NON-MOMENT BEAM CONNECTION SCHEDULE FOR ADDITIONAL INFO
