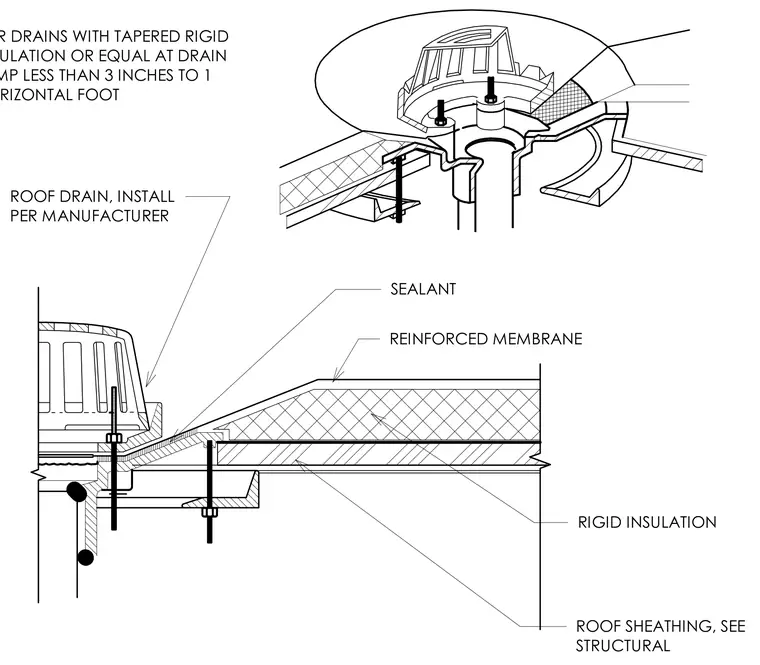

The roof drain assembly integrates into a timber roof sheathing substrate supported by structural framing. Tapered rigid insulation creates a sump around the drain bowl with a slope of less than three inches to one horizontal foot. A reinforced waterproofing membrane ties directly into the roof drain flange, sealed with continuous sealant at the perimeter. The roof drain is installed strictly according to the manufacturer specifications.
ROOF SHEATHING, SEE STRUCTURAL FOR DRAINS WITH TAPERED RIGID INSULATION OR EQUAL AT DRAIN SUMP LESS THAN 3 INCHES TO 1 HORIZONTAL FOOT ROOF DRAIN, INSTALL PER MANUFACTURER SEALANT REINFORCED MEMBRANE RIGID INSULATION
