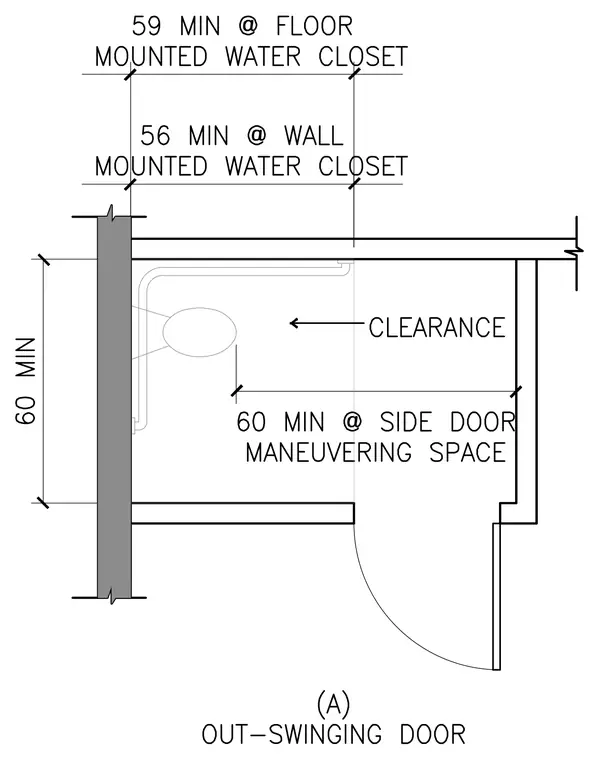

An accessible toilet stall layout provides minimum clearances for water closets and maneuvering space. The compartment features an out-swinging door with sixty inches minimum side door maneuvering space. A floor-mounted water closet requires fifty-nine inches minimum depth, while a wall-mounted water closet requires fifty-six inches minimum. Grab bars are positioned along the wall and adjacent to the plumbing fixture.
