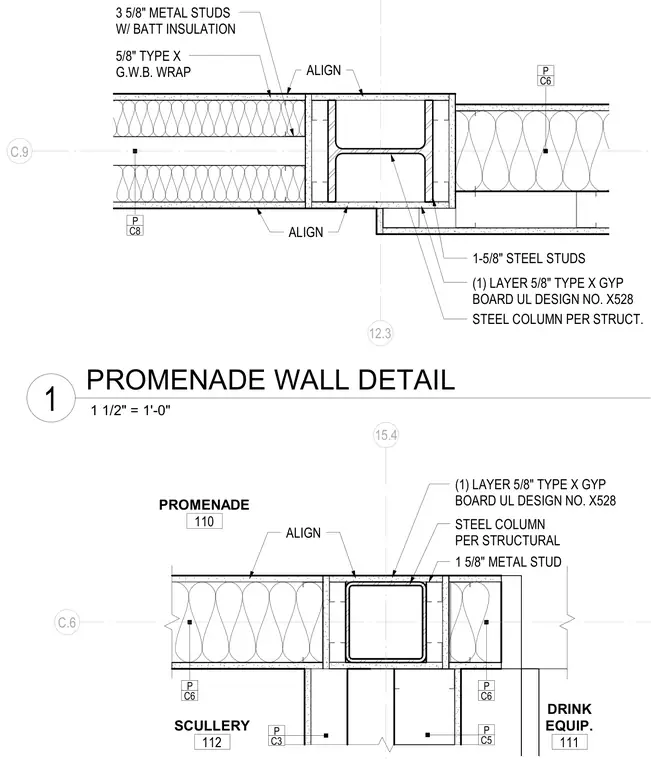

Metal stud partition framing transitions around structural steel columns with a gypsum board wrap. The assembly incorporates 3-5/8 inch and 1-5/8 inch cold-formed steel studs with batt insulation. The structural steel column receives a single layer of 5/8 inch Type X gypsum board complying with UL Design Number X528.
C6 P 1-5/8" STEEL STUDS (1) LAYER 5/8" TYPE X GYP BOARD UL DESIGN NO. X528 STEEL COLUMN PER STRUCT. ALIGN ALIGN C8 P 3 5/8" METAL STUDS W/ BATT INSULATION 5/8" TYPE X G.W.B. WRAP 12.3 C.9 (1) LAYER 5/8" TYPE X GYP BOARD UL DESIGN NO. X528 STEEL COLUMN PER STRUCTURAL C6 P C6 P ALIGN 1 5/8" METAL STUD 15.4 C.6 C5 P C3 P SCULLERY 112 DRINK EQUIP. 111 PROMENADE 110 1 1/2" = 1'-0" 1 PROMENADE WALL DETAIL
