The shaft wall partition terminates at a concrete deck using a slotted J-track mechanically fastened at a maximum of twenty-four inches on center. A one-half-inch fire sealant approved by the Underwriters Laboratories assembly is applied at the deck edge form. Two-hour spray fireproofing and elastomeric spray firestop are installed at rated assemblies per manufacturer instructions. The partition type and subtype are completed as scheduled.

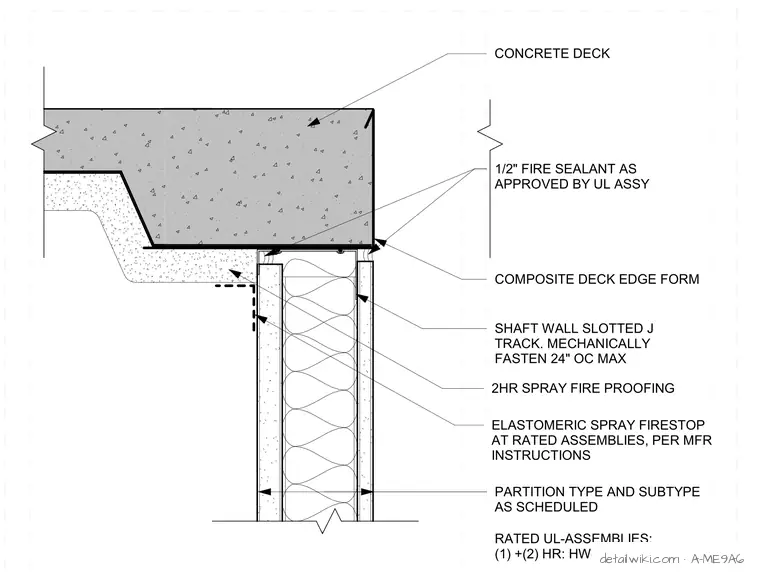

RATED UL-ASSEMBLIES: (1) +(2) HR: HW-D-0119 CONCRETE DECK SHAFT WALL SLOTTED J TRACK. MECHANICALLY FASTEN 24" OC MAX PARTITION TYPE AND SUBTYPE AS SCHEDULED 1/2" FIRE SEALANT AS APPROVED BY UL ASSY COMPOSITE DECK EDGE FORM 2HR SPRAY FIRE PROOFING ELASTOMERIC SPRAY FIRESTOP AT RATED ASSEMBLIES, PER MFR INSTRUCTIONS
