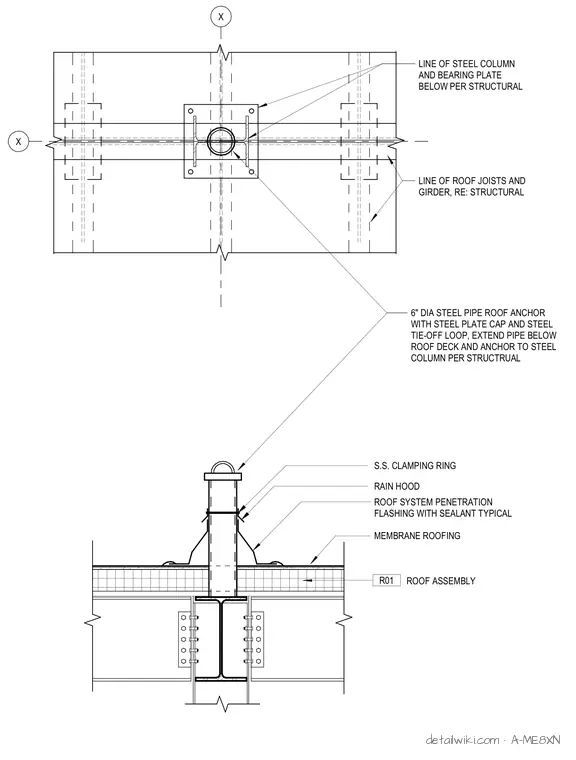

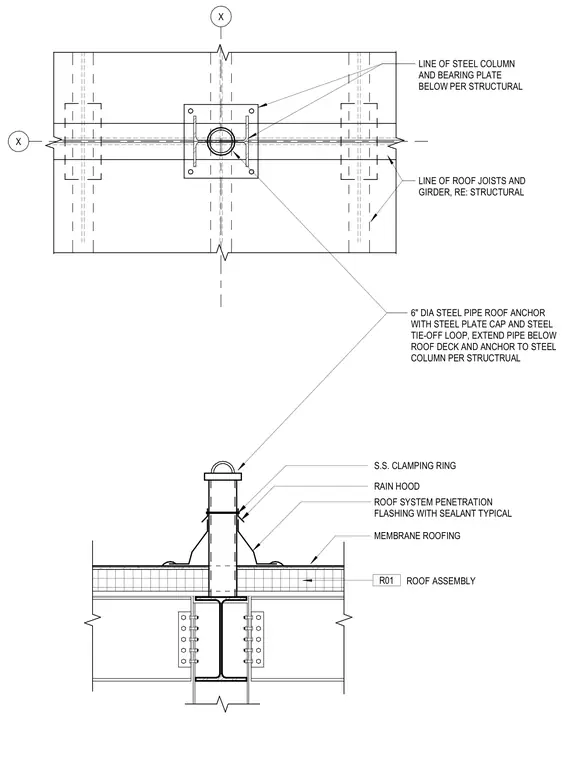

The assembly consists of a six-inch diameter steel pipe roof anchor extending through the roof deck and anchored to the steel column below. The pipe features a steel plate cap and a steel tie-off loop at the top. A stainless steel clamping ring and rain hood are installed at the roof surface to maintain a watertight seal. The roof system penetration is finished with sealant over the membrane roofing. The structural support includes a bearing plate at the column top, with roof joists and girders framing into the column assembly.
Text on the drawing
ROOF SYSTEM PENETRATION FLASHING WITH SEALANT TYPICAL MEMBRANE ROOFING S.S. CLAMPING RING RAIN HOOD ROOF ASSEMBLY R01
