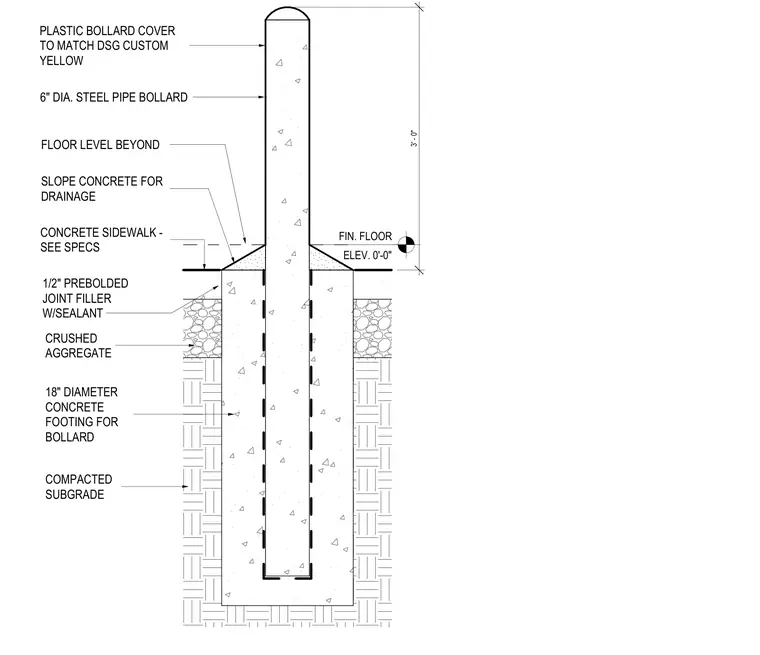

A six-inch diameter steel pipe bollard extends three feet above the finished floor elevation, encased in an eighteen-inch diameter concrete footing. A plastic bollard cover matches the custom yellow color. The surrounding concrete sidewalk slopes for drainage away from the post, separated by a half-inch preformed joint filler with sealant. The assembly rests on a bed of crushed aggregate over compacted subgrade.
3' - 0" PLASTIC BOLLARD COVER TO MATCH DSG CUSTOM YELLOW 6" DIA. STEEL PIPE BOLLARD CONCRETE SIDEWALK - SEE SPECS 1/2" PREBOLDED JOINT FILLER W/SEALANT CRUSHED AGGREGATE 18" DIAMETER CONCRETE FOOTING FOR BOLLARD COMPACTED SUBGRADE SLOPE CONCRETE FOR DRAINAGE FIN. FLOOR ELEV. 0'-0" FLOOR LEVEL BEYOND
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
