Architectural · A-MDZ9X

Wood Window Sill at Concrete Foundation Wall

Materials

Concrete Steel Timber / Wood Gypsum / Drywall EIFS / Plaster / Stucco Membrane / Roofing

Elements

Walls Windows Curtain Walls Floors / Slabs Foundations / Footings Expansion / Control Joints Waterproofing / Flashing Insulation Anchors / Embeds Connections / Plates

Connections

Expansion / Slip Connection

About this detail

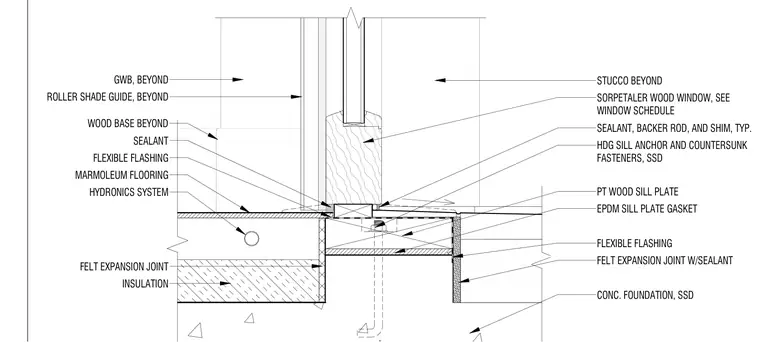

A Sorpetaler wood window sits upon a pressure-treated wood sill plate anchored to a concrete foundation wall with hot-dip galvanized sill anchors and countersunk fasteners. An ethylene propylene diene monomer sill plate gasket and flexible flashing provide weather sealing beneath the window frame, complemented by exterior sealant, backer rods, and shims. The concrete foundation includes a felt expansion joint with sealant and perimeter insulation. Interior finishes feature Marmoleum flooring over a hydronics system, gypsum wallboard, a wood base, and a roller shade guide.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
