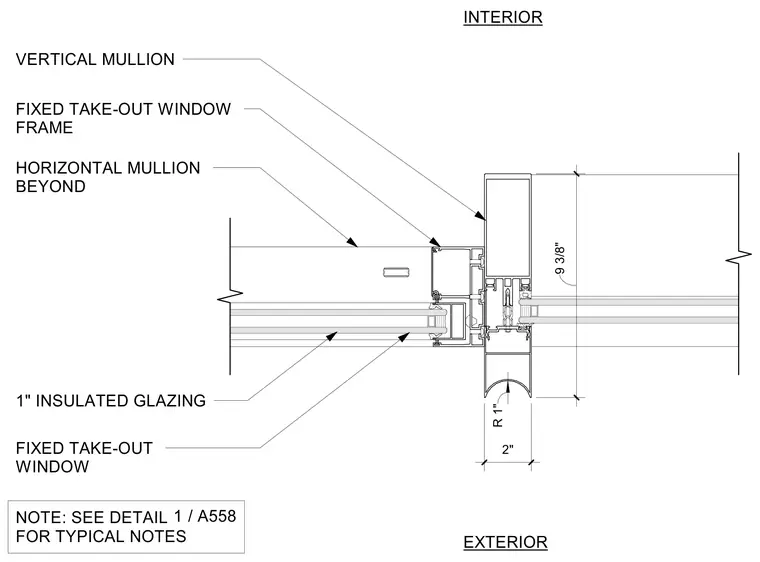

Jamb configuration for a take-out window assembly featuring a fixed take-out window frame and vertical and horizontal mullions. The glazing consists of one-inch insulated glass units installed within the frame. A horizontal mullion is visible beyond the primary section cut. Dimensions indicate a two-inch frame depth with a nine-and-three-eighths-inch section height.
INTERIOR EXTERIOR HORIZONTAL MULLION BEYOND VERTICAL MULLION FIXED TAKE-OUT WINDOW FRAME 1" INSULATED GLAZING / 1 A558 NOTE: SEE DETAIL FOR TYPICAL NOTES FIXED TAKE-OUT WINDOW R 1" 2" 9 3/8"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
