A structural pipe support penetrates a plywood deck supported by a metal base plate sized per structural drawings. An adhered flashing membrane covers the roof assembly, transitioning up the base with a grout fill and a twenty-four gauge galvanized iron hood. A stainless steel hose clamp secures the top with a one-hundred percent urethane sealant bead. If a split lead sleeve is necessary, a continuous lead solder is required, and the installation follows the eighty-mil TPO mechanically fastened specification guide.

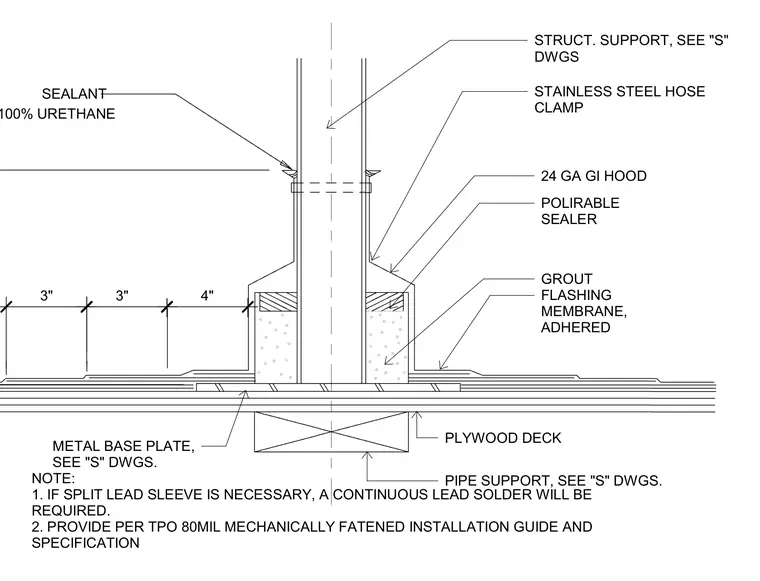

STAINLESS STEEL HOSE CLAMP 24 GA GI HOOD POLIRABLE SEALER FLASHING MEMBRANE, ADHERED GROUT STRUCT. SUPPORT, SEE "S" DWGS 100% URETHANE METAL BASE PLATE, SEE "S" DWGS. SEALANT PIPE SUPPORT, SEE "S" DWGS. NOTE: 1. IF SPLIT LEAD SLEEVE IS NECESSARY, A CONTINUOUS LEAD SOLDER WILL BE REQUIRED. 2. PROVIDE PER TPO 80MIL MECHANICALLY FATENED INSTALLATION GUIDE AND SPECIFICATION PLYWOOD DECK 3" 3" 4"
