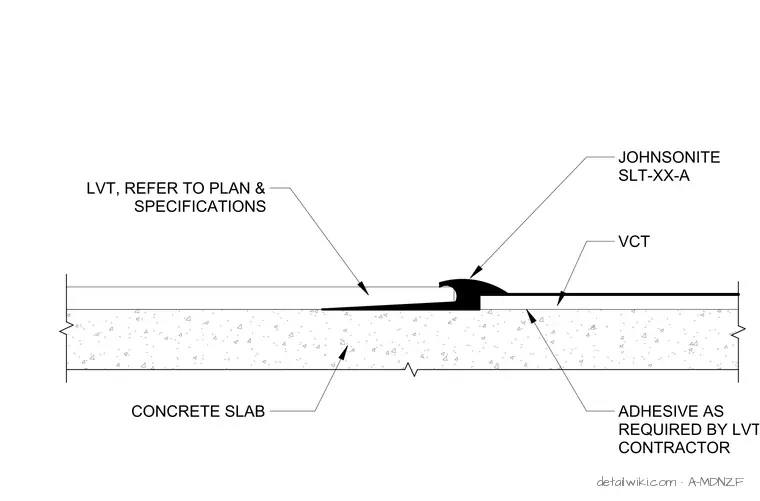

This transition assembly connects luxury vinyl tile (LVT) to vinyl composition tile (VCT) over a concrete slab substrate. A Johnsonite SLT-XX-A reducer strip bridges the height difference between the two flooring materials. The LVT is installed per project plans and specifications, while the VCT is set with adhesive as required by the flooring contractor.
