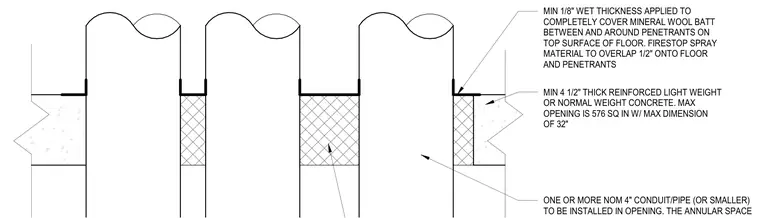

A through-penetration firestop assembly is installed within a minimum 4 1/2-inch thick reinforced lightweight or normal weight concrete floor slab. The maximum opening size is 576 square inches with a maximum dimension of 32 inches, accommodating one or more nominal 4-inch conduit or pipe penetrations or smaller. Mineral wool batt is packed tightly between and around the penetrants within the annular space. A minimum 1/8-inch wet thickness of firestop spray material is applied to completely cover the mineral wool batt on the top surface of the floor, overlapping one-half inch onto the floor and the penetrants.
MIN 4 1/2" THICK REINFORCED LIGHT WEIGHT OR NORMAL WEIGHT CONCRETE. MAX OPENING IS 576 SQ IN W/ MAX DIMENSION OF 32" MIN 1/8" WET THICKNESS APPLIED TO COMPLETELY COVER MINERAL WOOL BATT BETWEEN AND AROUND PENETRANTS ON TOP SURFACE OF FLOOR. FIRESTOP SPRAY MATERIAL TO OVERLAP 1/2" ONTO FLOOR AND PENETRANTS ONE OR MORE NOM 4" CONDUIT/PIPE (OR SMALLER) TO BE INSTALLED IN OPENING. THE ANNULAR SPACE
