Architectural · A-MDFBR

Accessible Seating and Assistive Listening Signage Detail

Materials

Elements

About this detail

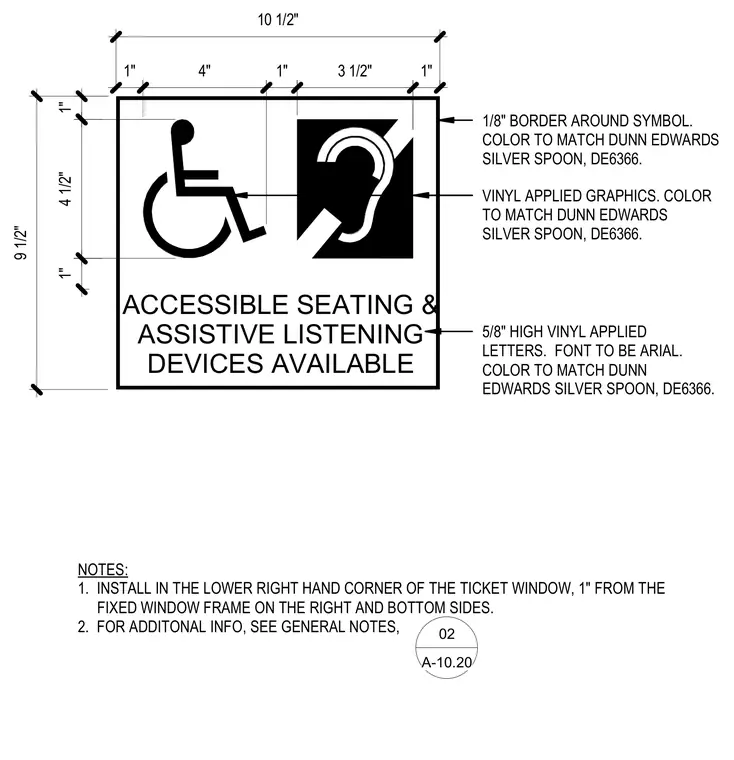

Vinyl applied graphics designate accessible seating and assistive listening devices available at ticket windows. The overall sign measures nine and one-half inches high by ten and one-half inches wide with a one-eighth-inch border surrounding the symbols. The graphics use Arial font with five-eighths-inch high lettering and color matching Dunn Edwards Silver Spoon, DE6366. Installation is positioned in the lower right hand corner of the ticket window, one inch from the fixed window frame on the right and bottom sides.
