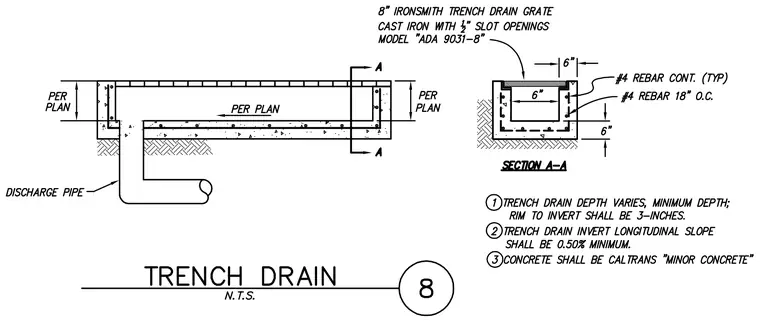

This concrete trench drain detail features an 8-inch Ironsmith trench drain grate made of cast iron with one-half-inch slot openings, model ADA 9031-8. The reinforced concrete trench body includes continuous number 4 rebar and number 4 rebar spaced at eighteen inches on center. A discharge pipe exits the trench assembly for drainage. The trench drain depth varies per plan with a minimum depth from rim to invert of three inches, and the invert longitudinal slope is zero point five zero percent minimum. Concrete is specified as Caltrans minor concrete.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
