A scheduled metal stud partition meets the structure above with a continuous metal runner and acoustical sealant. A duct passes through the partition with thermal insulation where required. Any gap larger than one-half inch is covered with gypsum board, lapped two inches, and screwed before applying continuous acoustical sealant.

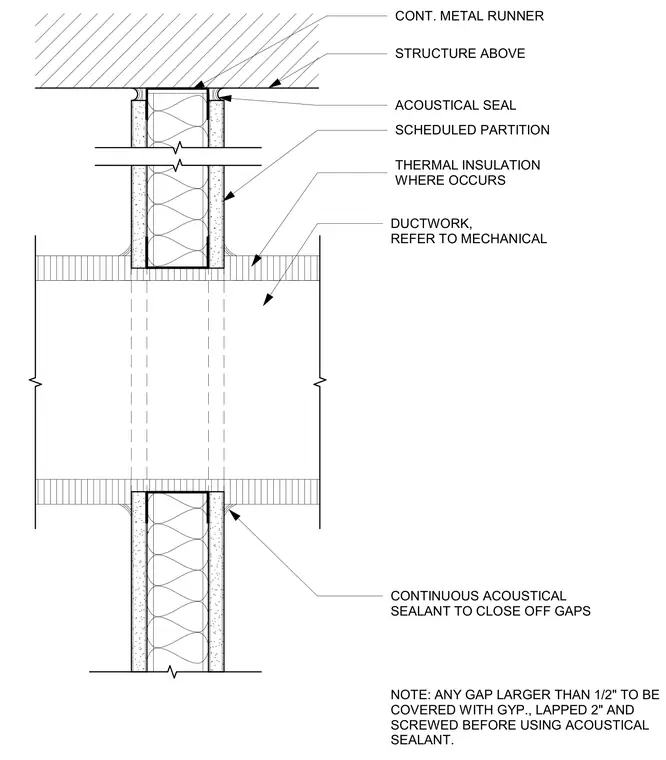

SCHEDULED PARTITION CONTINUOUS ACOUSTICAL SEALANT TO CLOSE OFF GAPS DUCTWORK, REFER TO MECHANICAL NOTE: ANY GAP LARGER THAN 1/2" TO BE COVERED WITH GYP., LAPPED 2" AND SCREWED BEFORE USING ACOUSTICAL SEALANT. THERMAL INSULATION WHERE OCCURS STRUCTURE ABOVE ACOUSTICAL SEAL CONT. METAL RUNNER
