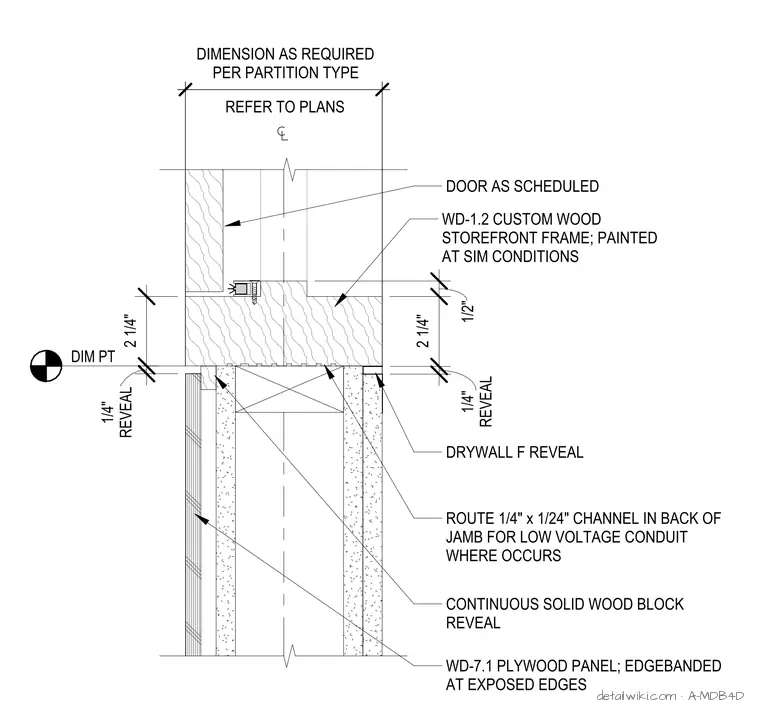

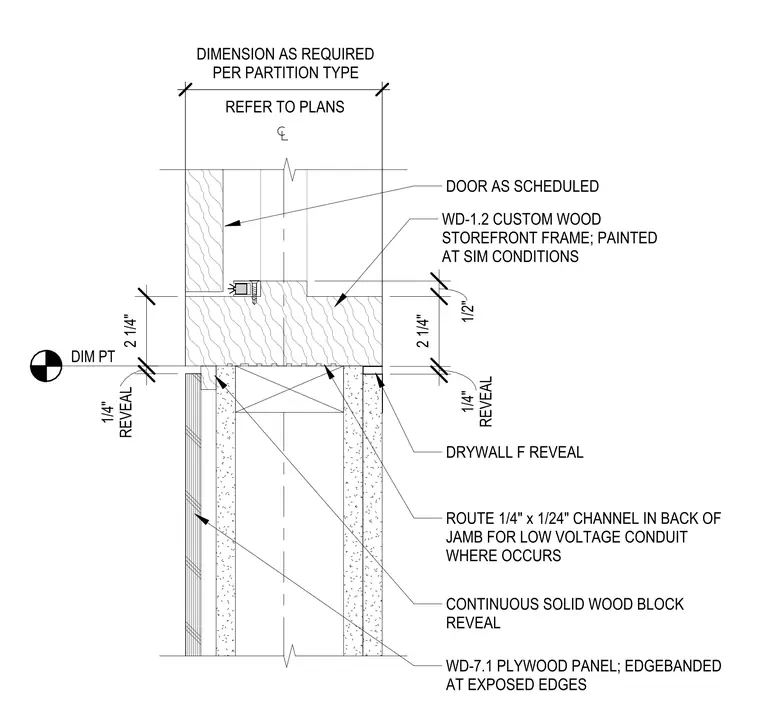

This door jamb assembly features a WD-1.2 custom painted wood storefront frame set within a partition wall. The frame is detailed with a one-quarter inch reveal at the drywall interface, which is finished with a drywall F-reveal trim. A continuous solid wood block is installed behind the jamb, and a one-quarter inch by one-twenty-fourth inch channel is routed into the back of the jamb to accommodate low voltage conduit where required. The adjacent wall construction includes WD-7.1 plywood paneling with edge-banded exposed edges. The door is installed as specified in the door schedule, with the overall partition width dimensioned as required per the partition type.
