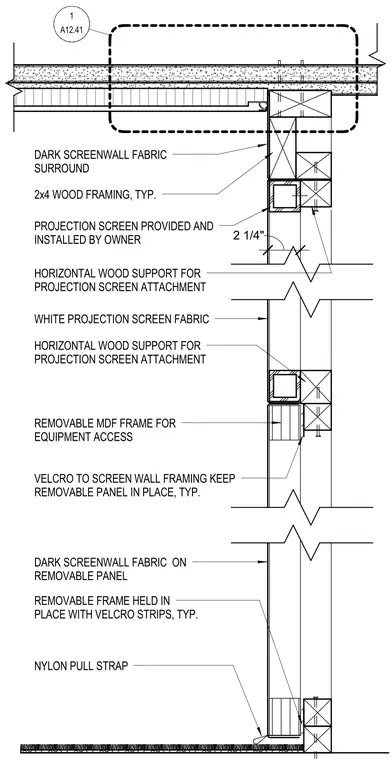

The assembly consists of 2x4 wood framing typically wrapped in dark screenwall fabric surround. A white projection screen fabric is secured with horizontal wood supports for attachment, accompanied by a projection screen provided and installed by the owner. A removable medium-density fiberboard frame allows for equipment access and is held in place with typical velcro strips attached to the screen wall framing. A nylon pull strap is provided at the base of the removable panel covered in dark screenwall fabric.
A12.41 1 DARK SCREENWALL FABRIC SURROUND 2x4 WOOD FRAMING, TYP. PROJECTION SCREEN PROVIDED AND INSTALLED BY OWNER WHITE PROJECTION SCREEN FABRIC VELCRO TO SCREEN WALL FRAMING KEEP REMOVABLE PANEL IN PLACE, TYP. REMOVABLE MDF FRAME FOR EQUIPMENT ACCESS NYLON PULL STRAP DARK SCREENWALL FABRIC ON REMOVABLE PANEL REMOVABLE FRAME HELD IN PLACE WITH VELCRO STRIPS, TYP. 2 1/4" HORIZONTAL WOOD SUPPORT FOR PROJECTION SCREEN ATTACHMENT HORIZONTAL WOOD SUPPORT FOR PROJECTION SCREEN ATTACHMENT
