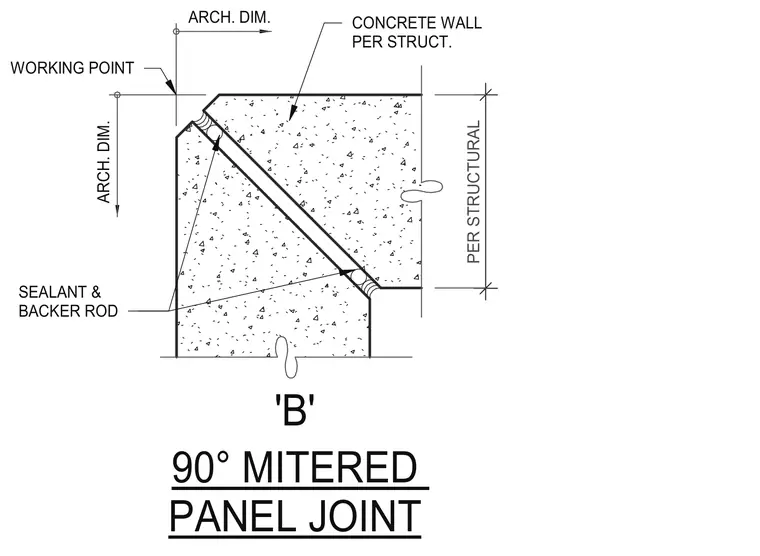

A ninety-degree mitered corner joint occurs between concrete walls sized per structural requirements. A structural sealant bead backed by a round backer rod is placed along the exterior miter interface. Architectural dimensions tie the outer corner back to a defined working point.
PER STRUCTURAL SEALANT & BACKER ROD 'B' 90° MITERED PANEL JOINT CONCRETE WALL PER STRUCT. WORKING POINT ARCH. DIM. ARCH. DIM.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
