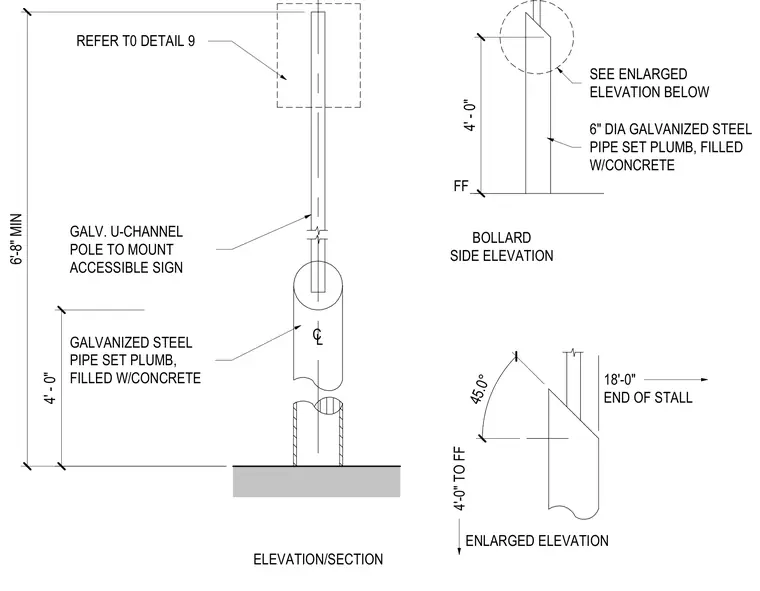

A six-inch diameter galvanized steel pipe bollard is set plumb and filled with concrete, extending four feet above finished floor. A galvanized U-channel pole extends upward from the bollard center to a minimum height of six feet eight inches to mount an accessible parking sign. An enlarged elevation shows the top of the steel pipe cut at a forty-five degree angle, located eighteen feet from the end of the parking stall.
REFER T0 DETAIL 9 GALV. U-CHANNEL POLE TO MOUNT ACCESSIBLE SIGN GALVANIZED STEEL PIPE SET PLUMB, FILLED W/CONCRETE ELEVATION/SECTION ENLARGED ELEVATION C L 6'-8" MIN 4' - 0" 4' - 0" BOLLARD SIDE ELEVATION SEE ENLARGED ELEVATION BELOW 6" DIA GALVANIZED STEEL PIPE SET PLUMB, FILLED W/CONCRETE FF 4'-0" TO FF 45.0° 18'-0" END OF STALL
