Architectural · A-MCF6Y

Canopy Pipe Connection at Metal Deck and Ledger Angle

Materials

Elements

Canopies Decks Waterproofing / Flashing Connections / Plates

About this detail

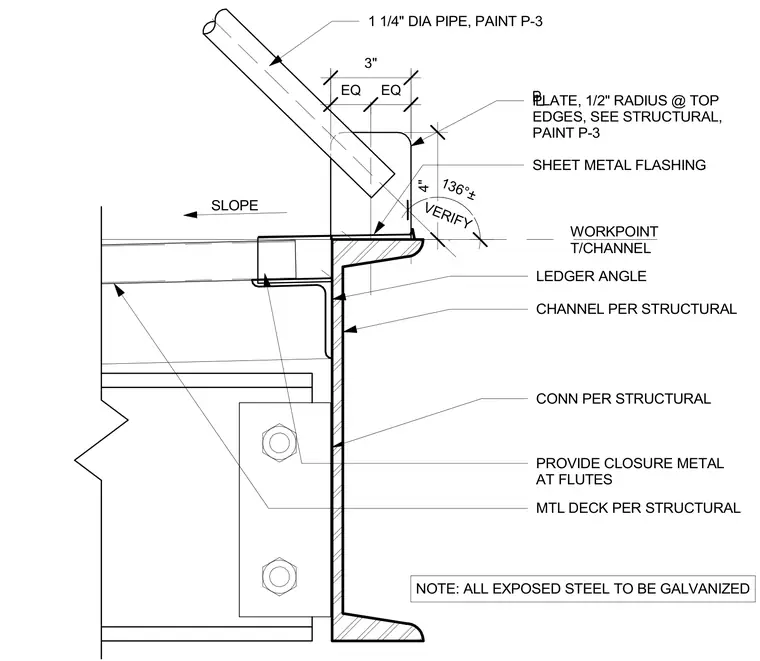

An inclined 1 1/4-inch diameter pipe connects to a steel plate with a 1/2-inch radius at its top edges, supported by a channel ledger angle. The connection maintains a 136-degree slope and coordinates with structural framing members, including a channel and metal deck with closure plates at the flutes. Sheet metal flashing protects the assembly, and all exposed steel is specified to be galvanized and finished with paint P-3.
