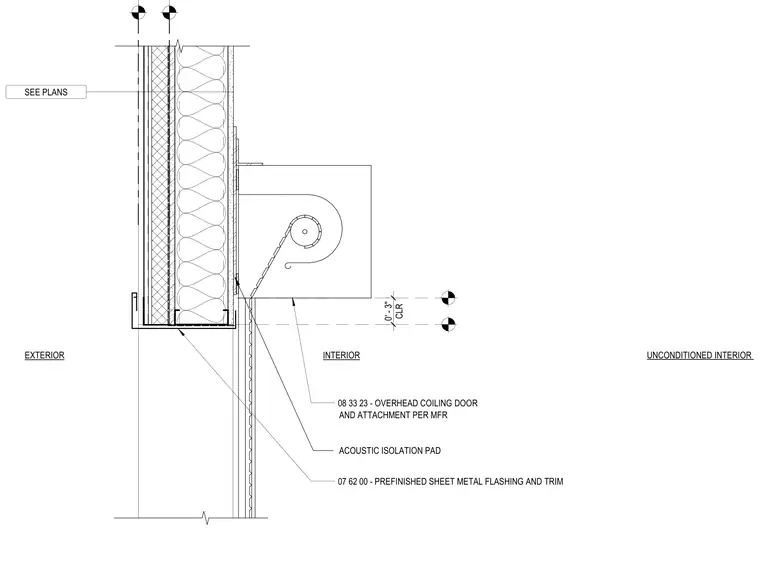

An overhead coiling door housing is mounted to the interior face of an exterior wall assembly with an acoustic isolation pad. Prefinished sheet metal flashing and trim are installed at the wall interface. Attachment of the coiling door is per manufacturer specifications maintaining a three-inch clearance.
UNCONDITIONED INTERIOR SEE PLANS 07 62 00 - PREFINISHED SHEET METAL FLASHING AND TRIM ACOUSTIC ISOLATION PAD CLR 0' - 3" EXTERIOR INTERIOR 08 33 23 - OVERHEAD COILING DOOR AND ATTACHMENT PER MFR
