Suspended drywall grid system supporting a five-eighths-inch gypsum board ceiling finished with paint designation P-10. The ceiling height is referenced to the reflected ceiling plan, abutting a scheduled partition with square off edges.

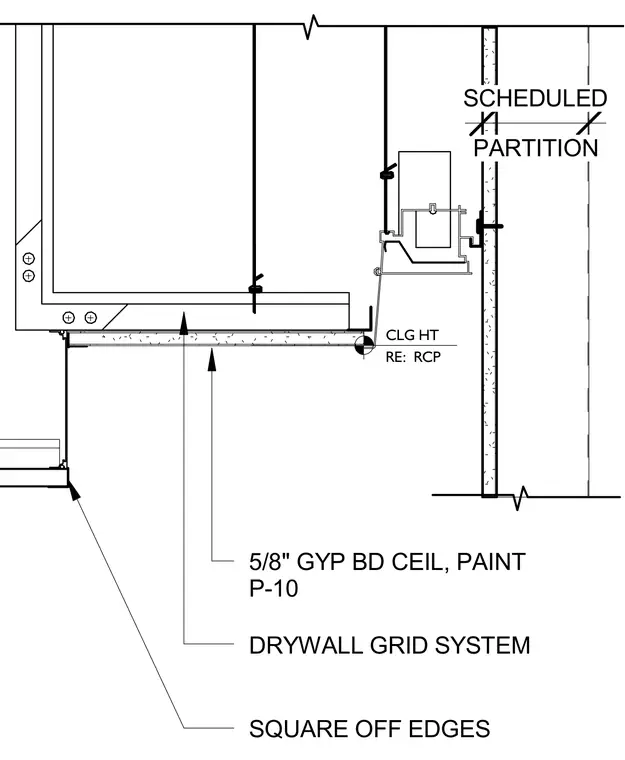

DRYWALL GRID SYSTEM 5/8" GYP BD CEIL, PAINT P-10 CLG HT RE: RCP PARTITION SCHEDULED SQUARE OFF EDGES
