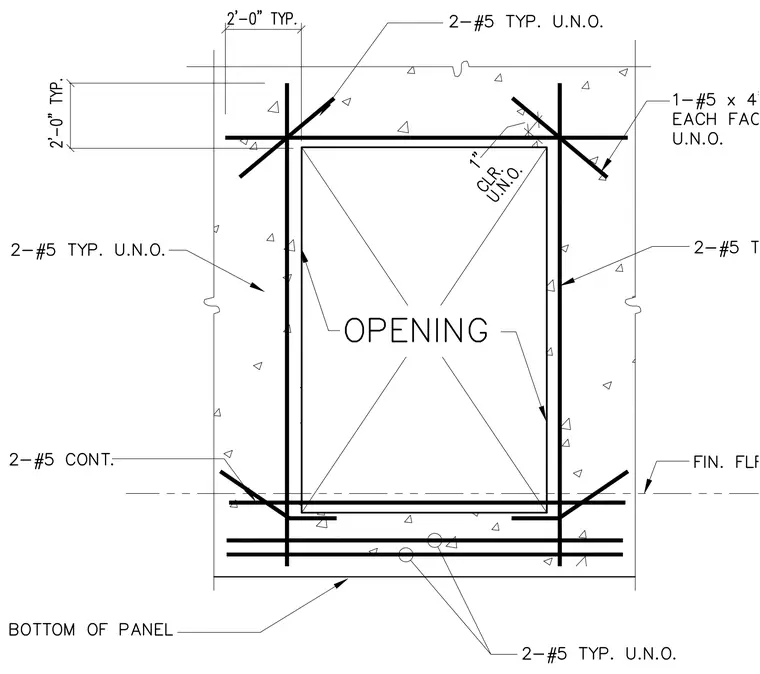

Reinforcement layout around an opening in a concrete wall or panel features two number five reinforcing bars placed continuously around the perimeter. Two number five diagonal bars extend two feet typical from each corner unless noted otherwise. One number five by four-foot bar is placed at each face unless noted otherwise, maintaining a one-inch clearance typical. The assembly includes a finished floor line and bottom of panel reference.
