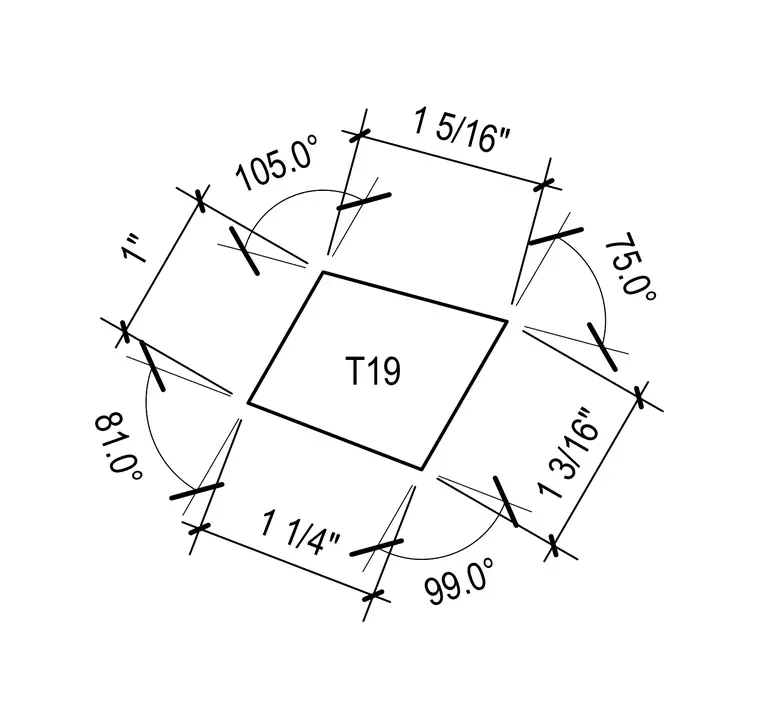

A small lowline tile unit designated as T19 is detailed with specific edge dimensions of one inch, one and five-sixteenths inches, one and three-sixteenths inches, and one and one-quarter inches. Corner angles measure 75.0 degrees, 81.0 degrees, 99.0 degrees, and 105.0 degrees.
