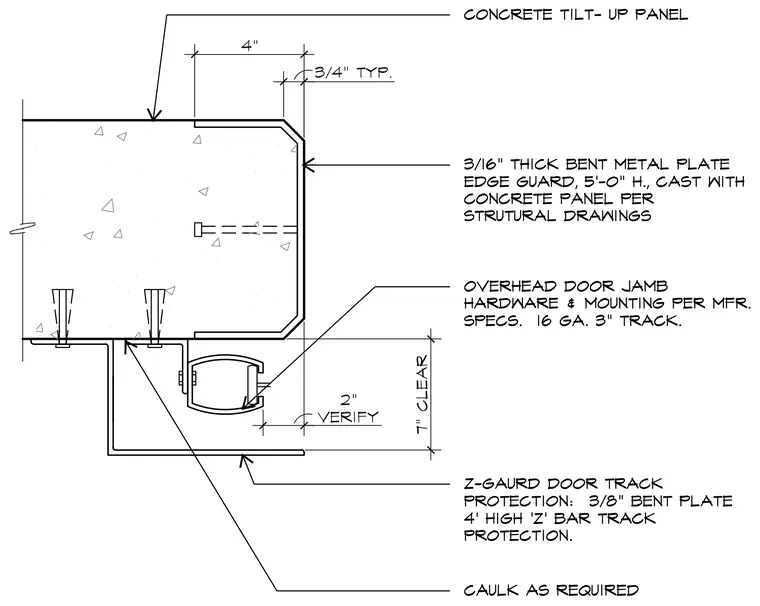

A three-sixteenths-inch thick bent metal plate edge guard is cast into the concrete tilt-up panel per structural drawings with a five-foot height. An overhead door jamb hardware and mounting is installed per manufacturer specifications utilizing a sixteen-gauge, three-inch track. A three-eighths-inch bent plate Z-bar track protection, four feet high, is anchored adjacent to the track. Caulking is applied as required at the interface between components.
