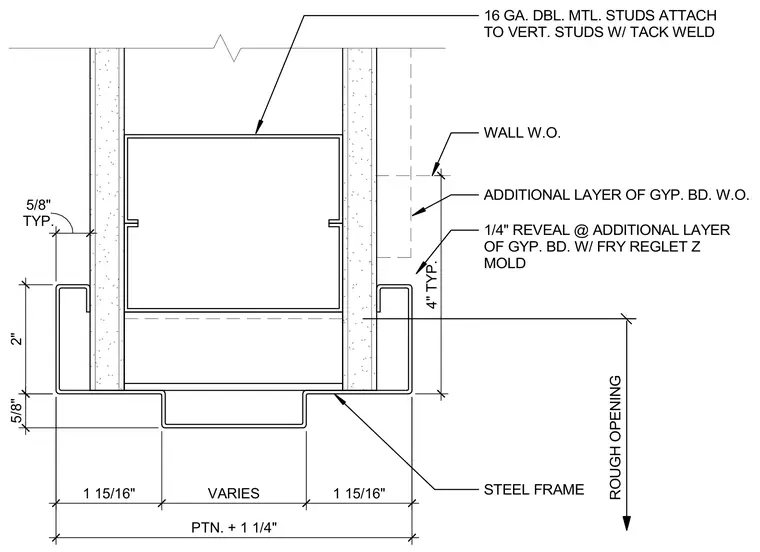

A quarter-inch reveal is formed at the additional layer of gypsum board using a Fry Reglet Z-mold profile. The assembly incorporates a rough opening framed with sixteen gauge double metal studs attached to vertical studs with tack welds. Gypsum board is installed with standard five-eighth inch typical thickness across the framing.
WALL W.O. TYP. 5/8" 2" 5/8" 1 15/16" VARIES 1 15/16" PTN. + 1 1/4" ADDITIONAL LAYER OF GYP. BD. W.O. 1/4" REVEAL @ ADDITIONAL LAYER OF GYP. BD. W/ FRY REGLET Z MOLD 4" TYP. A ROUGH OPENING STEEL FRAME 16 GA. DBL. MTL. STUDS ATTACH TO VERT. STUDS W/ TACK WELD
