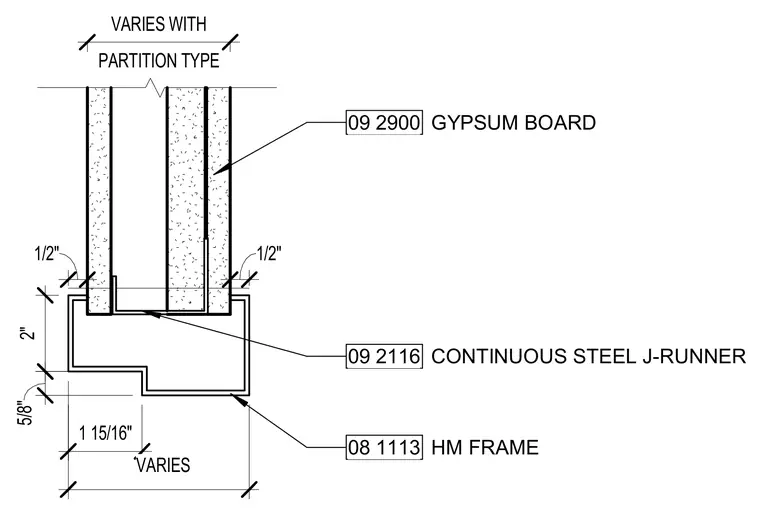

A hollow metal frame receives the partition head with a continuous steel J-runner at the top of the wall. Gypsum board panels finish both faces of the partition, terminating with specific clearance dimensions at the frame profile. Partition type and overall dimensions vary according to project requirements.
PARTITION TYPE VARIES WITH 1/2" 1/2" 2" 5/8" 1 15/16" 09 2116 CONTINUOUS STEEL J-RUNNER 08 1113 HM FRAME 09 2900 GYPSUM BOARD VARIES
