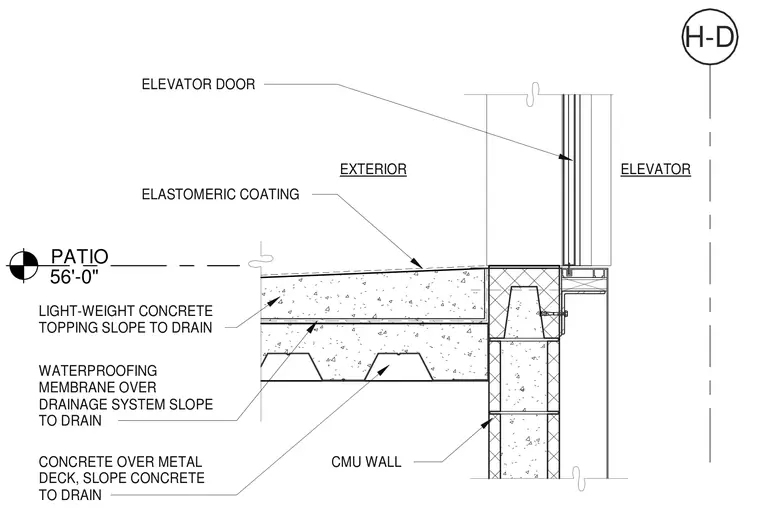

An elevator door sits directly above a concrete masonry unit wall and adjacent to a raised patio deck. The patio assembly consists of a light-weight concrete topping with an elastomeric coating sloping toward a drain, laid over a waterproofing membrane and a drainage system. The structural floor below comprises concrete over a metal deck, sloping to drain above the concrete masonry unit wall.
H-D PATIO 56'-0" EXTERIOR ELEVATOR ELEVATOR DOOR ELASTOMERIC COATING LIGHT-WEIGHT CONCRETE TOPPING SLOPE TO DRAIN WATERPROOFING MEMBRANE OVER DRAINAGE SYSTEM SLOPE TO DRAIN CONCRETE OVER METAL DECK, SLOPE CONCRETE TO DRAIN CMU WALL
