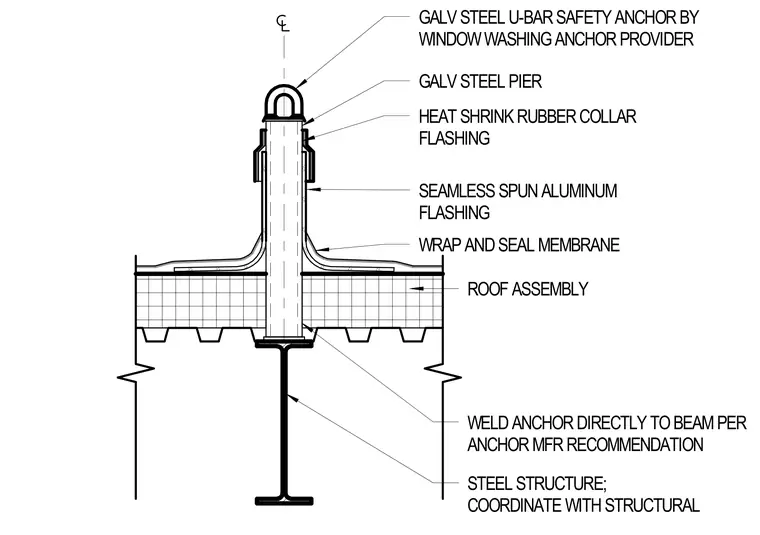

A galvanized steel U-bar safety anchor is provided by the window washing anchor provider and welded directly to the supporting steel structure beam per the anchor manufacturer recommendations. A galvanized steel pier rises through the roof assembly, encased in a seamless spun aluminum flashing and sealed with a wrap and seal membrane. A heat-shrink rubber collar flashing secures the upper connection.
HEAT SHRINK RUBBER COLLAR FLASHING GALV STEEL U-BAR SAFETY ANCHOR BY WINDOW WASHING ANCHOR PROVIDER GALV STEEL PIER STEEL STRUCTURE; COORDINATE WITH STRUCTURAL SEAMLESS SPUN ALUMINUM FLASHING WRAP AND SEAL MEMBRANE WELD ANCHOR DIRECTLY TO BEAM PER ANCHOR MFR RECOMMENDATION ROOF ASSEMBLY
