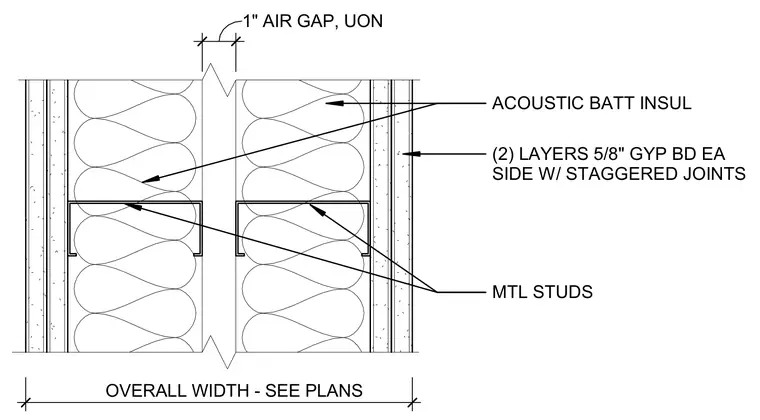

Two independent lines of metal studs support two layers of five-eighths inch gypsum board on each exterior face with staggered joints. Acoustic batt insulation fills the stud cavities and an air gap separates the two framing assemblies unless noted otherwise. The overall width is sized per plans.
(2) LAYERS 5/8" GYP BD EA SIDE W/ STAGGERED JOINTS MTL STUDS ACOUSTIC BATT INSUL 1" AIR GAP, UON OVERALL WIDTH - SEE PLANS
