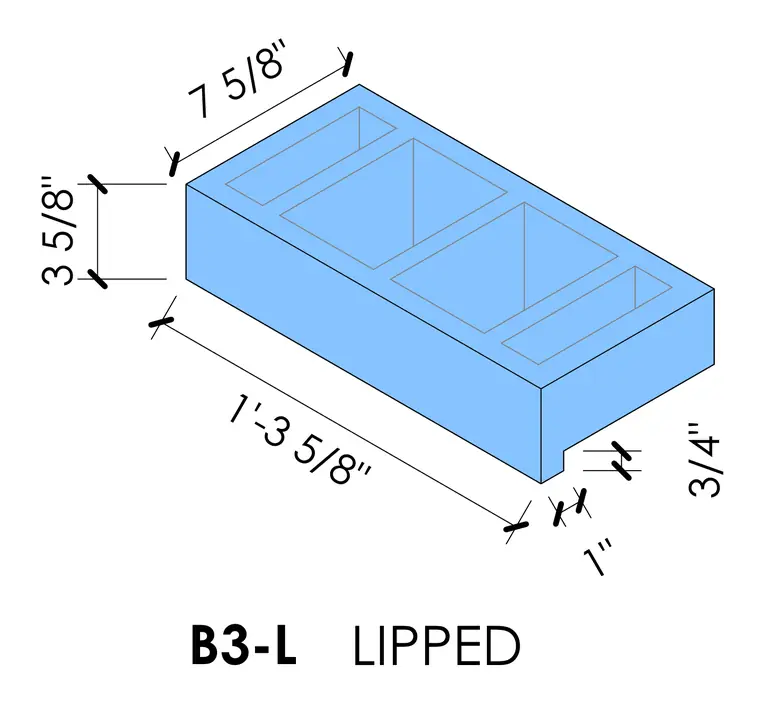

The lipped concrete masonry unit features an overall length of one foot three and five-eighths inches, a width of seven and five-eighths inches, and a height of three and five-eighths inches. A one-inch wide by three-quarter-inch high lip runs along the bottom edge of the block. The unit includes four internal core cells.
