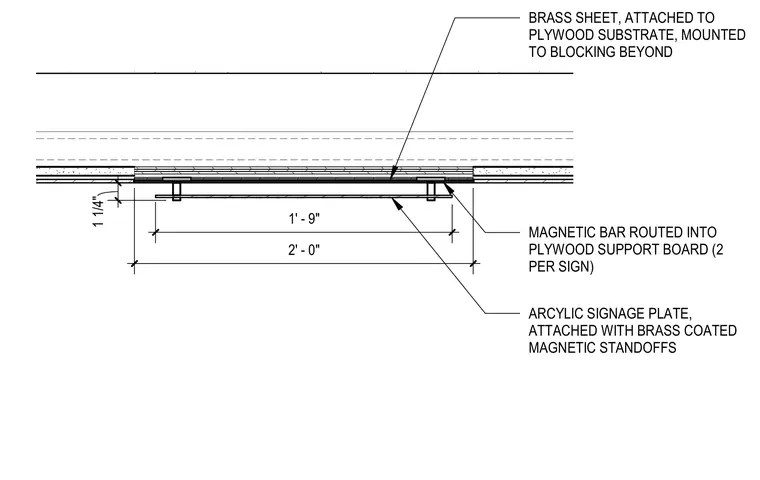

An acrylic signage plate is suspended one and one-quarter inches in front of the wall substrate using two brass-coated magnetic standoffs. These standoffs connect to magnetic bars routed flush into a plywood support board. A brass sheet is attached to the plywood substrate, which is mounted to wood blocking beyond.
2' - 0" 1 1/4" 1' - 9" MAGNETIC BAR ROUTED INTO PLYWOOD SUPPORT BOARD (2 PER SIGN) ARCYLIC SIGNAGE PLATE, ATTACHED WITH BRASS COATED MAGNETIC STANDOFFS BRASS SHEET, ATTACHED TO PLYWOOD SUBSTRATE, MOUNTED TO BLOCKING BEYOND
