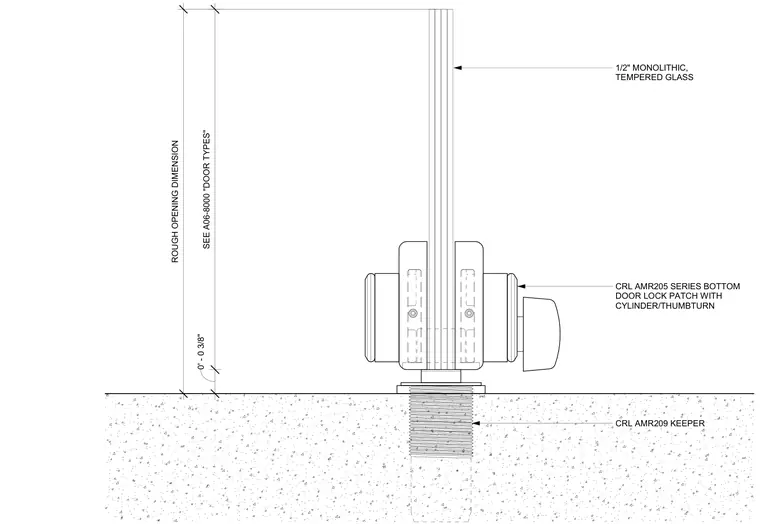

A threshold condition for a monolithic tempered glass door secured at the floor slab. A half-inch monolithic tempered glass panel extends downward into a bottom door lock patch fitted with a cylinder and thumbturn. The lock mechanism engages a floor-mounted keeper anchored into the structural slab below. Vertical dimensions establish the rough opening clearance from the finished floor level.
0' - 0 3/8" SEE A06-8000 "DOOR TYPES" ROUGH OPENING DIMENSION 1/2" MONOLITHIC, TEMPERED GLASS CRL AMR205 SERIES BOTTOM DOOR LOCK PATCH WITH CYLINDER/THUMBTURN CRL AMR209 KEEPER
