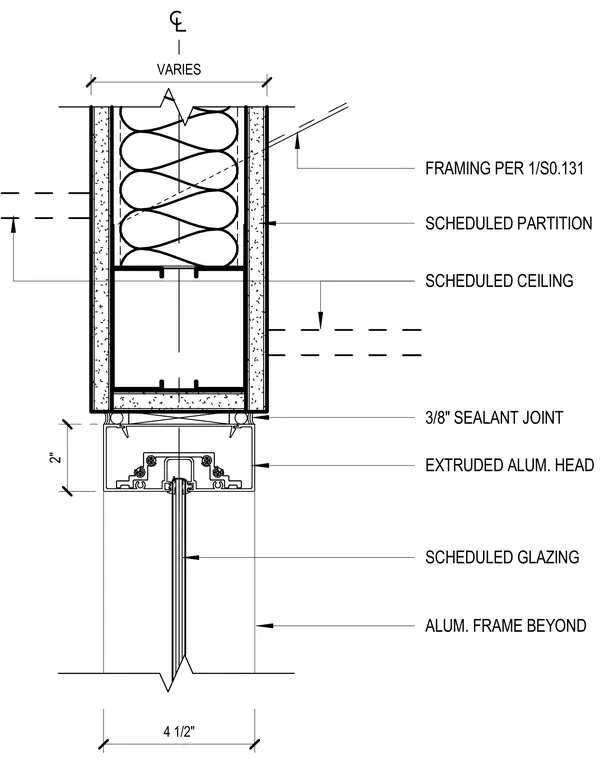

An extruded aluminum head profile sits below a scheduled ceiling and partition with framing per 1/S0.131. A three-eighths inch sealant joint bridges the gap between the framing and the head extrusion. Scheduled glazing is installed within the aluminum frame, with additional aluminum frame elements visible beyond.
FRAMING PER 1/S0.131 2" 4 1/2" SCHEDULED CEILING SCHEDULED PARTITION 3/8" SEALANT JOINT EXTRUDED ALUM. HEAD SCHEDULED GLAZING ALUM. FRAME BEYOND VARIES
