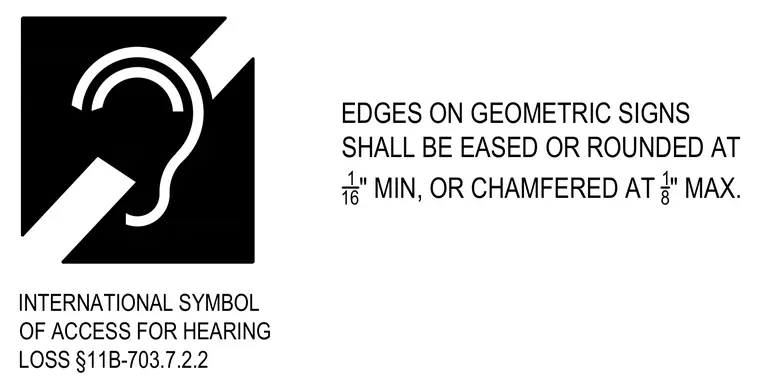

Geometric accessibility signs require edges to be eased or rounded at a one-sixteenth inch minimum, or chamfered at an eighth inch maximum per section 11B-703.7.2.2. The International Symbol of Access for hearing loss is displayed alongside the text requirement.
INTERNATIONAL SYMBOL OF ACCESS FOR HEARING LOSS §11B-703.7.2.2 EDGES ON GEOMETRIC SIGNS SHALL BE EASED OR ROUNDED AT 1 16 " MIN, OR CHAMFERED AT 1 8 " MAX.
