A-MASH4 — Aluminum Panel and Mineral Wool Insulation at Storefront Vertical Mullion

Architectural · A-MASH4

Aluminum Panel and Mineral Wool Insulation at Storefront Vertical Mullion

Materials

Elements

Storefronts Insulation

About this detail

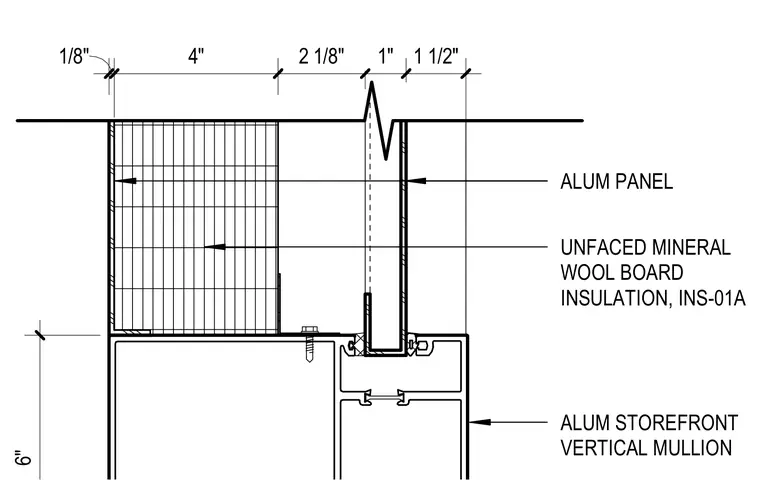

An aluminum panel is mounted adjacent to unfaced mineral wool board insulation supported by an aluminum storefront vertical mullion. The assembly details the thermal insulation layer and panel clearances.

ALUM PANEL 1/8" 4" 2 1/8" 1" 1 1/2" 6" ALUM STOREFRONT VERTICAL MULLION UNFACED MINERAL WOOL BOARD INSULATION, INS-01A

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.

Start membership
