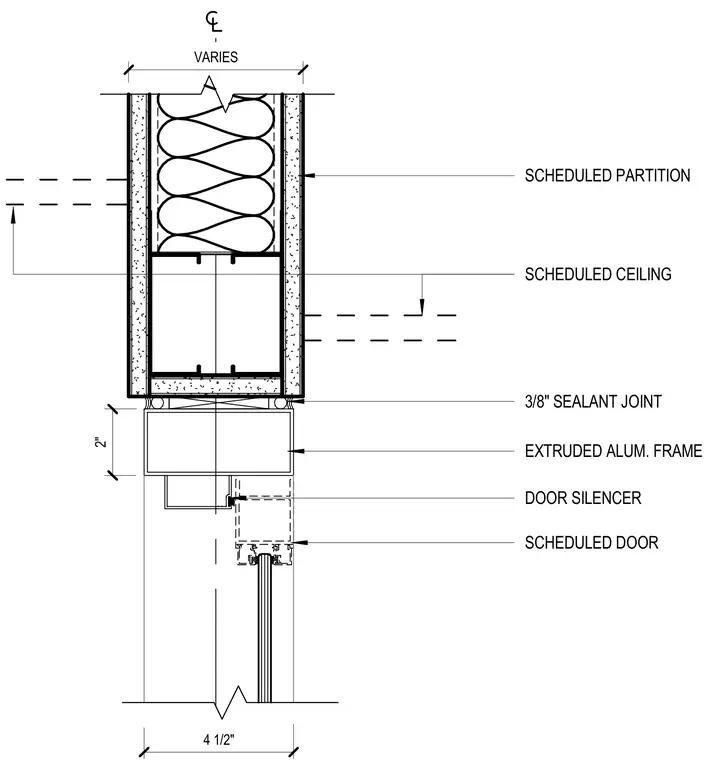

An extruded aluminum frame connects below a scheduled partition with a three-eighths-inch sealant joint. A scheduled ceiling aligns with the partition assembly above the frame. A door silencer is installed within the four-and-one-half-inch frame to receive a scheduled door.
SCHEDULED CEILING 2" SCHEDULED PARTITION VARIES 3/8" SEALANT JOINT EXTRUDED ALUM. FRAME DOOR SILENCER SCHEDULED DOOR 4 1/2"
