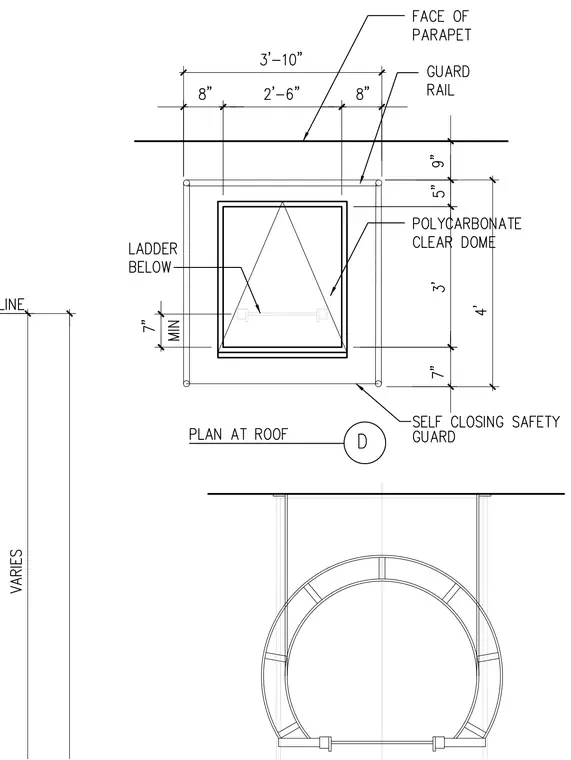

The roof assembly features a rectangular polycarbonate clear dome with overall dimensions of three feet by four feet, positioned at a distance of nine inches and seven inches from the surrounding self-closing safety guard and face of the parapet. A ladder is located below the hatch, maintaining a seven-inch minimum clearance. The safety guard measures three feet ten inches wide with an interior opening of two feet six inches and eight-inch edge clearances.
