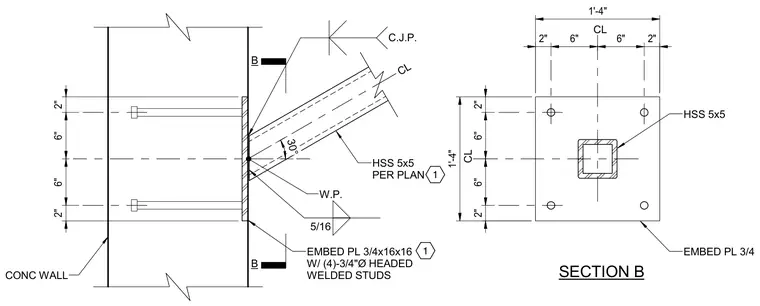

An HSS 5x5 hollow structural section brace connects to a concrete wall via a three-quarter-inch by sixteen-inch by sixteen-inch steel embed plate. The embed plate is anchored into the concrete wall with four three-quarter-inch-diameter headed welded studs. The HSS brace intersects the plate at a thirty-degree angle and connects with a complete joint penetration weld at the top and a five-sixteenth-inch fillet weld at the bottom. A sectional elevation view details the plate dimensions and symmetrical stud layout.
2" 6" 6" 2" 2" 6" 6" 2" 2" 6" 6" 2" 1'-4" 1'-4" CL CL HSS 5x5 HSS 5x5 PER PLAN 30° W.P. 1 5/16 C.J.P. EMBED PL 3/4x16x16 W/ (4)-3/4"Ø HEADED WELDED STUDS EMBED PL 3/4 1 CL B B SECTION B CONC WALL
