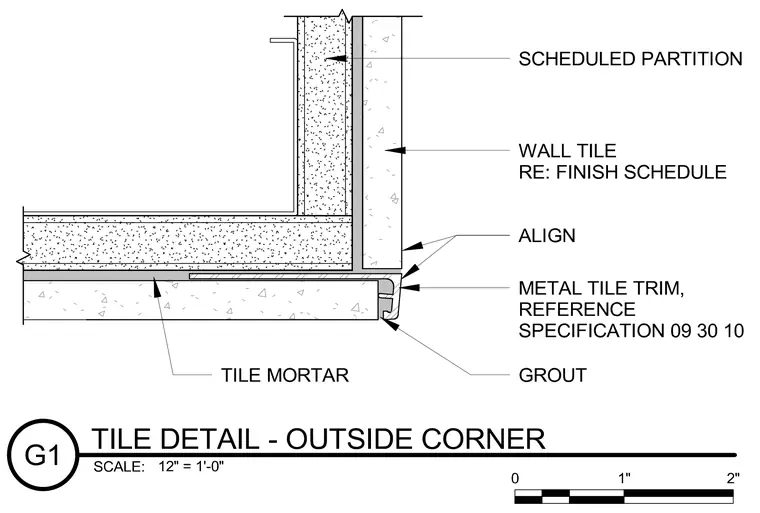

Wall tile is installed over a scheduled partition with aligning tile edges at the outside corner. A metal tile trim piece, referenced in specification 09 30 10, finishes the edge alongside tile mortar and grout. Wall tile selections are referenced to the finish schedule.
